Ditec Cross 30

Ditec Cross 30 is the automation system for sliding gates up to 20 m wide, weighing up to 3000 kg. The ideal solution for round-the-clock operation. The three-phase motor has built-in magnetic limit switches and control panel.

User manual

k

Specifications

THE AUTOMATION SYSTEM DESIGNED TO LAST

Ditec Cross 30 is the automation system for sliding gates up to 20 m wide, weighing up to 3000 kg.

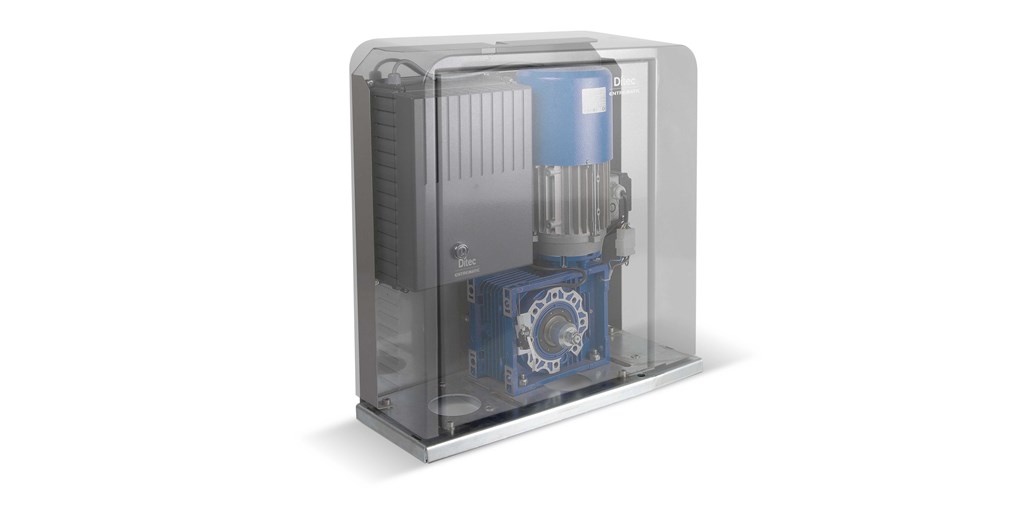

The ideal solution for round-the-clock operation. The three-phase motor has built-in magnetic limit switches and control panel.

RELIABLE and STURDY

  • steel worm screw; cemented, tempered and adjusted with a bronze crown
  • high-reliability control panels with sturdy contacts
  • irreversible geared motor to avoid installation of electro-mechanical locks
  • Safety-Test function
  • electric brake and electronic clutch
  • sturdy lever-release devices, easy to access when the inspection door is open
  • inspection window  to ensure only
  • vertical levelling screws (additional adjustment spacers included in the package).

POWERFUL

Three-phase electronics 400 V guarantee maximum performance even under adverse conditions, thanks to greater dynamic thrust during the initial phase of operation.

FULL COMPLIANCE WITH EU DIRECTIVES AND STANDARDS

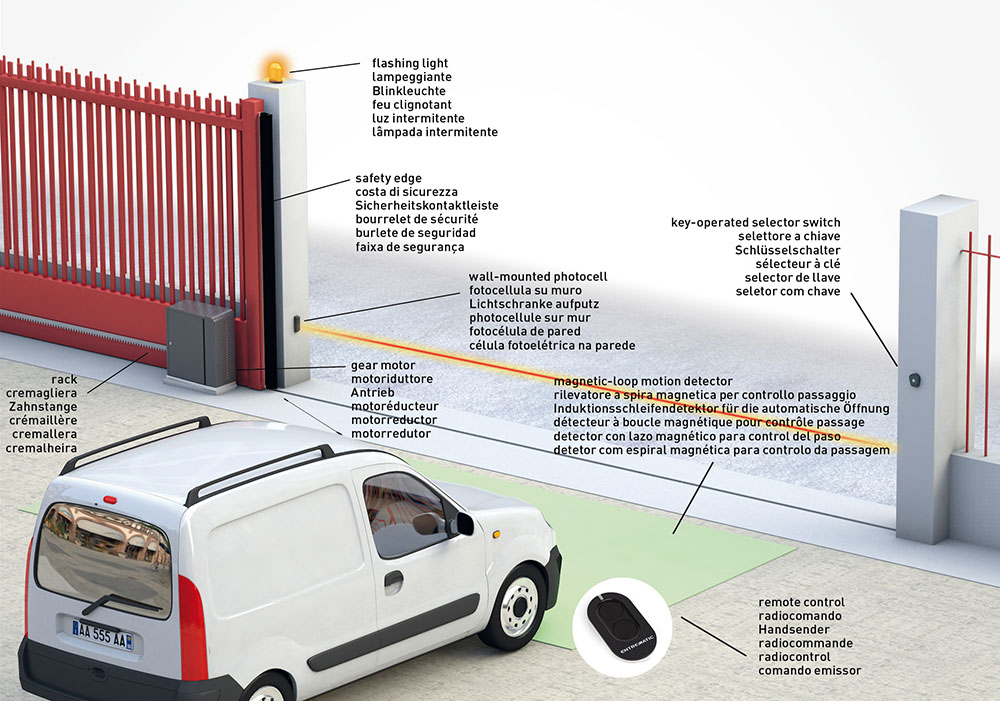

The automation system can be completed with Ditec command, control and safety devices
